51.2 v 65Ah golf cart lifepo4 paket baterai lithium ion deep cycle IP67

2024-06-28 03:25

Spesifikasi

Model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Tegangan Nominal	51.2V	51.2V	51.2V	51.2V	76.8V
Kapasitas Nominal	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87.6V
Pangisi daya maksimal Saiki	100A	100A	60A	150A	100A
Pembuangan Terus Duwe	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Tebokake voltase sing dipotong	43.2V	43.2V	43.2V	43.2V	43.2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Suhu Pangisi daya	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Ngeculake Suhu	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	> 6000	> 6000	> 6000	> 6000	> 6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Tingkat Perlindhungan	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
Bobot	48.3kg	49kg	32kg	71kg	72.8kg
Protokol Komunikasi	BISA / RS485	RS485	RS485	BISA / RS485	BISA / RS485



Fitur Utama

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

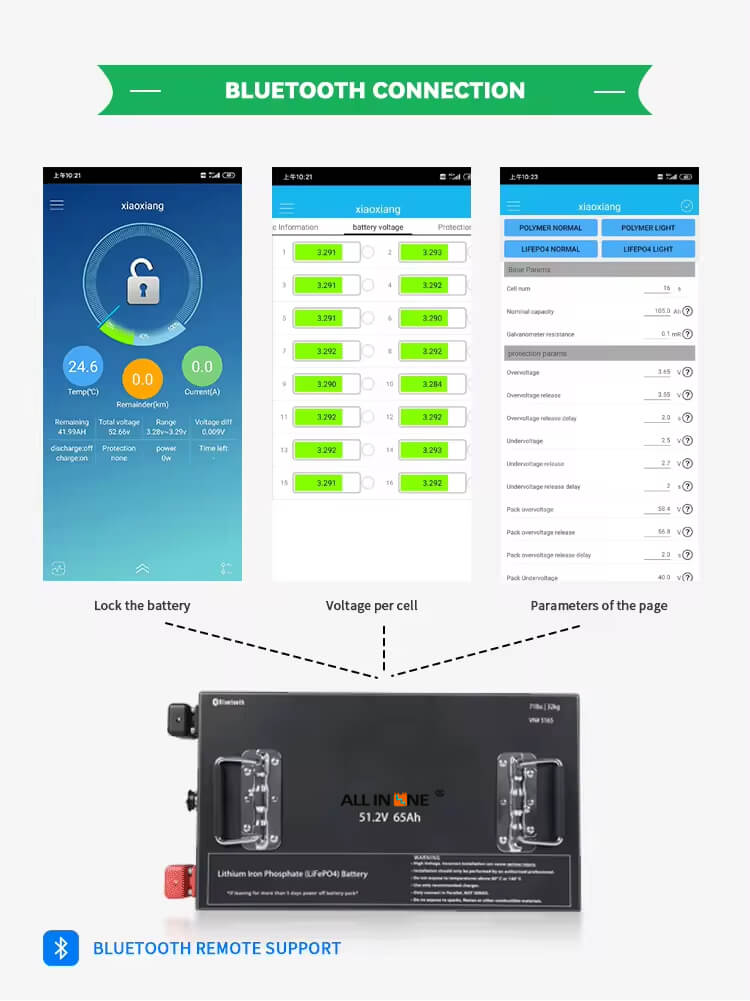

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Kita Janji
1. Kabeh produk bakal dites 100% sadurunge dikirim kanggo mesthekake yen produk ora duwe masalah kualitas.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Aplikasi

Pabrik Kita

Pengepakan lan Pengiriman

FAQ

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

P2: Apa sampeyan nyedhiyakake layanan purna jual?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

P3 Apa kaunggulan perusahaan sampeyan?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

Q4: Apa sampeyan nampa OEM / ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Ngomong umum, udakara 25-30 dina gumantung karo macem-macem barang sawise entuk pambayaran lan konfirmasi babagan conto.

Q6:Are your battery real capacity?
A6: Kabeh sel batere kanthi Kelas A, 100% kapasitas anyar lan nyata.

P7: Apa sampeyan pabrik utawa perusahaan dagang?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

P8: Apa jinis sertifikat sing sampeyan duwe?
A8: Kita bisa nyedhiyakake CE, ROHS, FCC, IEC62133, MSDS, UN38.3 yen jumlah pesanan sampeyan akeh.
