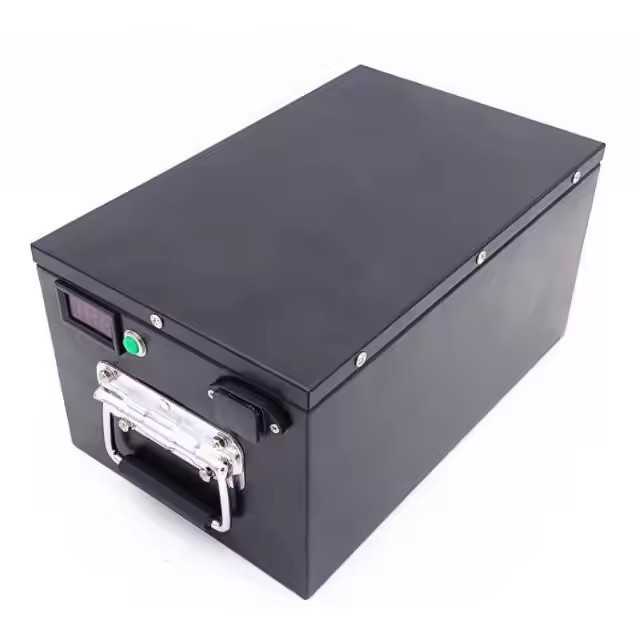

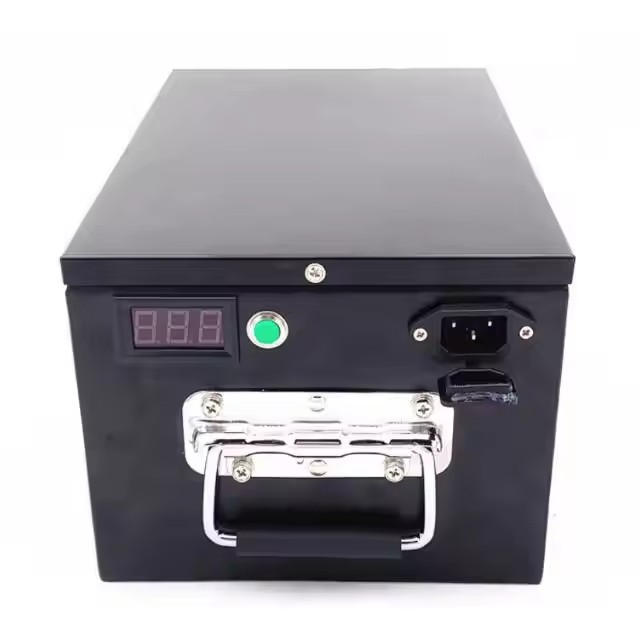

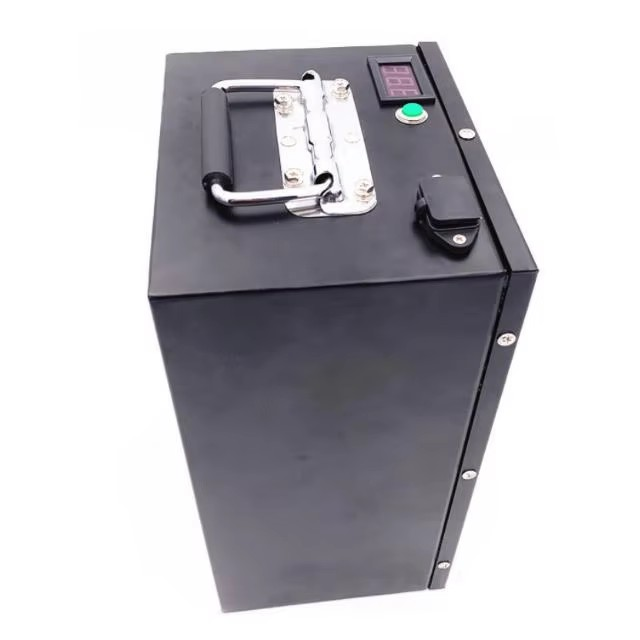

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

Spesifikasi

Item	Spesifikasi	Cathetan
Tegangan Nominal:	60V	Any voltage can be customized
Nominal Capacity:	100Ah	Any capacity can be customized
Discharge Cut-Off:	47.5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Impedansi:	200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Ukuran:	Flexible	Any dimension can be customized
Bobot:	120KG

Fitur

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

BMS sing dibangun

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Ngisi daya Liwat proteksi saiki	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
Ngeculake Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Cekak protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	Ukuran	Bobot	with BMS	RS485/Bluetooth	Cycles	Waranti
60V 10AH	195*165*175mm	9.5kg	Ya	Kasedhiya	6000times	5years
60V 20AH	330*175*220mm	19kg	Ya	Kasedhiya	6000times	5years
60V 30AH	407*175*235mm	25kg	Ya	Kasedhiya	6000times	5years
60V 40AH	407*175*235mm	28kg	Ya	Kasedhiya	6000times	5years
60V 50AH	525*240*215mm	44kg	Ya	Kasedhiya	6000times	5years
60V 120AH	420*360*550mm	84kg	Ya	Kasedhiya	6000times	5years
60V 200AH	1000*600*182mm	156kg	Ya	Kasedhiya	6000times	5years

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Aplikasi

Pabrik Kita

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



FAQ

1.Q: Apa sampeyan ndhukung urutan sampel?

A: Ya, welcome kanggo pesen sampel, kita duwe gudang ing Amerika Serikat lan Eropa, sawetara conto bisa dikirim kanthi cepet.

2.Q: Apa produk wis dibangun ing BMS?

A: Ya, BMS cerdas kalebu JBD/PACE/SmarTec built-in kanggo mesthekake baterei ana ing pinter ngatur.

3.Q: Can your company accept customized order ?

A: Mesthi, kustomisasi minangka kekuatan kita.

4.Q: Apa paket baterei bisa kompatibel karo inverter ing pasar?

A: Ya Pak, paket kita kompatibel karo luwih saka 20 merek inverter ing pasar kalebu Victron, Goodwe, Solis, Growatts, Voltronics, Deye lan merek terkenal liyane.

5.Q: Kepiye Garansi?

A: 5 years upto its usage.

6.Q: Apa sampeyan duwe sertifikasi?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.Q: Kepiye cara pangiriman lan wektu?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Apa sampeyan duwe pabrik nyata?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
