Spesifikasi

Model	2022-AIN48V50AH	2022-AIN48V100AH	2022-AIN48V150AH	2022-AIN48V200AH
Tegangan Nominal (V)	48v	48v	48v	48v
Kapasitas Nominal (Ah)	50	100	150	200
Dianggo Kapasitas (Wh)	2400	4800	7200	9600
Ukuran (mm)	442385132	442410220	442450250	442450280
Bobot (Kg)	29	44	68	91
Urip Siklus	4000~6000 , 25℃	4000~6000 , 25℃	4000~6000 , 25℃	4000~6000 , 25℃
Communication Port	RS232 .RS485 .CAN RS232 .RS485 .CAN RS232 .RS485 .CAN
Tegangan Ngisi daya (V)	53.2~54	53.2~54	53.2~54	53.2~54
Gangguan Internal (mΩ)	≤50	≤50	≤50	≤50
Ngisi daya / Ngeculake Saiki (A)	10 (Recommended)	20 (Recommended)	30 (Recommended)	40 (Recommended)
Desain Urip (Taun)	12	12	12	12

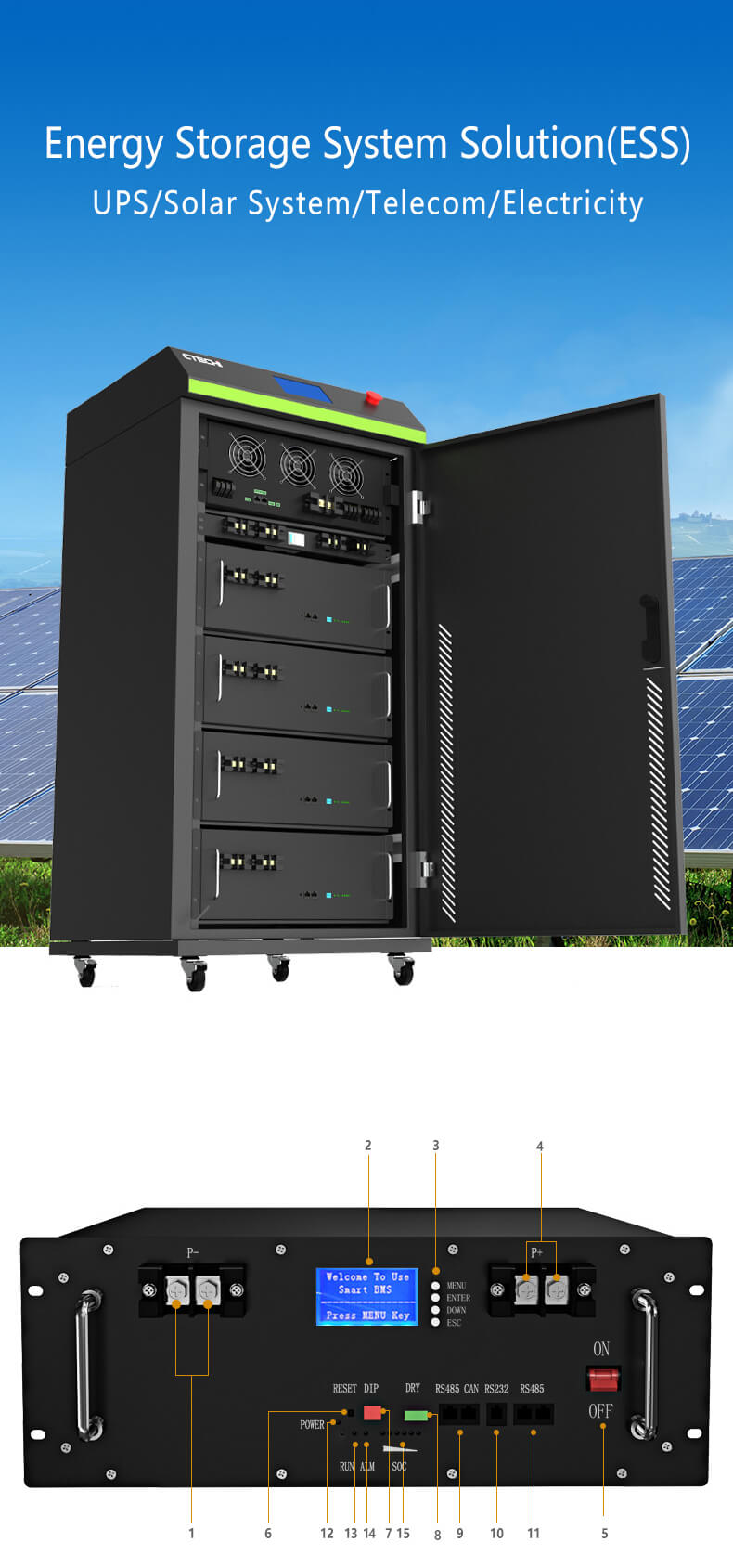

<div">Item	Jeneng	Definition
1	Negative socket	Battery output or parallel cathode line
2	LCD Monitor	Lcd display
3	Menu button
4	Positive socket	Battery output or parallel anode line
5	Ngalih daya	OFF/ON, remains ‘ON’ when using
6	RESET
7	DIP
8	DRY
9	CAN/485	CAN/485 Communication Port communication (factory default CAN communication)
10	RS232	Multiple interfaces possible
11	RS485-2	Multiple interfaces possible
12	Kekuwatan
13	RUN	Green light, flashing when standby, always on when discharge, flash when charging
14	ALM	Red lights, flash when warning, always on when protection. When the condition of triggering protection is removed, the battery can
15	SOC	Green light, showing battery capacity

Fitur

1.Longer Cycle Life : Offers up to 20 times longer cycle life than lead acid battery. Over 2000 cycles, also the cell is able to deliver virtually full power, helps to minimize replacement cost and reduce total cost of ownership

2.Lighter Weight : About 40% of the weight of a comparable lead acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.

3. Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity

4. Wider Temperature Range : -20℃~65℃

5. Keamanan Superior: Kimia Fosfat Besi Lithium mbebayani risiko bledosan utawa pembakaran amarga kakehan pengaruh gedhe utawa kahanan sirkuit cendhak

6. Proteksi Komprehensif BMS: Baterai lithium nduweni Sistem Manajemen Baterai internal (BMS) sing bisa nglindhungi saka overcharging, debit jero, kakehan, overheating lan sirkuit cendhak, lan laju debit mandhiri

7. Aplikasi wiyar: Cocog kanggo RV, Caravan, Marine, Boat, Overland, Cadangan daya serep lan Off Grid Applications.

Proyek Kita

Pabrik Kita

FAQ

1. Does the shipping way to our country include tax?
-Iku gumantung ing negara lan cara pangiriman sampeyan milih. Umume negara Asia, umume negara Eropa, Amerika Serikat, lan Kanada duwe saluran pengiriman sing kalebu pajak.

2. Why the transportation time is so long and the tracking number not updated in nearly a month?
-Kaya ngerti, batere (utamane batere daya dhuwur) minangka komoditas khusus, syarat-syarat transportasi ketat banget. Kita transit produk kanthi saluran logistik DG resmi, luwih alon tinimbang logistik normal, amarga kudu ngenteni jadwal kapal / Sepur DG. Amarga kekhasan produk lan logistik, nomer pelacakan sing diwenehake ora bakal dianyari sadurunge barang ngliwati bea cukai ing negara sampeyan. Aja kuwatir, barang sampeyan isih transit normal. Nalika barang liwat kebiasaan ing negara sampeyan, informasi pelacakan bakal dianyari, lan sampeyan bakal nampa sajrone 3-5 dina.

3. Is this product safe?
-Menehi biaya overcharge, over debit, over suhu, short circuit, akupunktur lan tes keamanan liyane, ora ana geni, ora ana bledosan apa wae.

4. How to confirm the high quality of the product you sent me?
-Baterai kita kabeh kelas A, Ora ketompo carane akeh sing sampeyan pesen, kita bakal nyoba saben produk sadurunge dikirim.

5. The battery is so heavy, will it damaged easily on the road?
-Siki uga minangka masalah utama kanggo kita. Sawise dandan lan verifikasi jangka panjang, kemasan saiki wis aman lan dipercaya. Nalika mbukak paket, sampeyan mesthi bakal ngrasakake keikhlasan.

6. Is it OK to print my logo on the product?
-Ya Kirimake informasi kanthi resmi sadurunge produksi lan konfirmasi desain dhisik adhedhasar conto.

Cathetan: Kita produsen baterai. Kabeh produk ora ndhukung ritel, kita mung bisnis B2B. Hubungi kita kanggo rega produk!
