OEM ODM 48v Golf Cart LiFePO4 Battery

2025-03-06 04:19

Spesifikasi

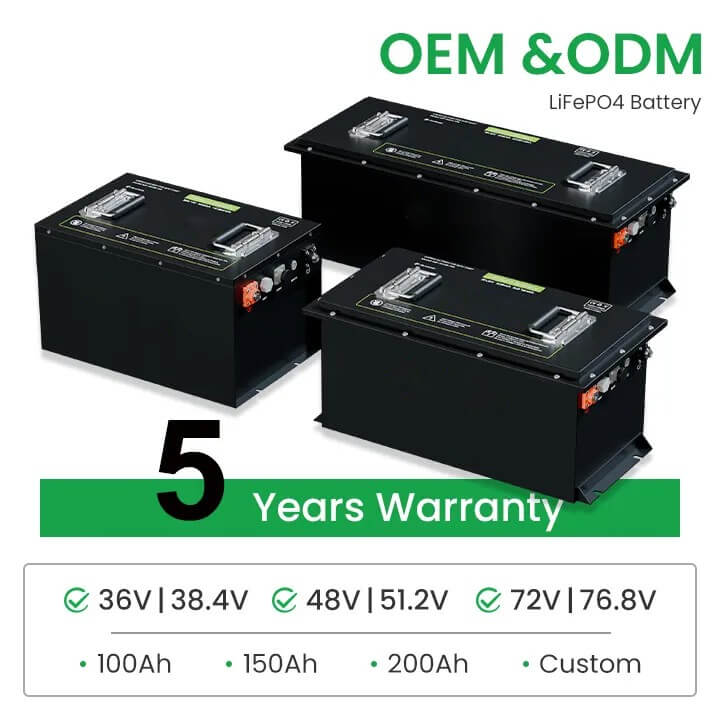

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Datasheet	Tegangan Nominal	Kapasitas Nominal	Nominal Energy	Ukuran (Support custom)	Bobot
36V (Support Customized Capacity / Size)
LFP36-50	38,4V	50Ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38,4V	60Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38,4V	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38,4V	100Ah	3840Wh	430*350*180mm	≈37kg
LFP36-105	38,4V	105Ah	4032Wh	425*210*245mm	≈37kg
LFP36-135	38,4V	135Ah	5184Wh	430*420*220mm	≈51kg
LFP36-150	38,4V	150Ah	5760Wh	460*380*220mm	≈55kg
LFP36-200	38,4V	200Ah	7680Wh	540*380*240mm	≈74kg
48V (Support Customized Capacity / Size)
LFP48-50	51.2V	50Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51.2V	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51.2V	80Ah	4096Wh	522*238*218mm	≈32.5kg
LFP48-100	51.2V	100Ah	5120Wh	530*350*180mm	≈46kg
LFP48-105	51.2V	105Ah	5376Wh	530*290*240mm	≈46kg
LFP48-135	51.2V	135Ah	6912Wh	530*420*220mm	≈61kg
LFP48-150	51.2V	150Ah	7680Wh	570*380*220mm	≈68kg
LFP48-200	51.2V	200Ah	10240Wh	650*380*240mm	≈92kg
72V (Support Customized Capacity / Size)
LFP72-50	76.8V	50Ah	3840Wh	470*330*150mm	≈50kg
LFP72-100	76.8V	100Ah	7680Wh	730*350*150mm	≈65kg
General
Siklus urip		≥6000 cycles (80%DOD), at 25°C
Suhu Pangisi daya		0 ~ 45°C (32 ~ 113°F)
Ngeculake Suhu		-20 ~ 55°C(-4 ~ 131F)
Suhu Panyimpen		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

Keuntungan Produk

Easy operation
1. Plug and Play(Easy installation)
2. Modular(Can be in Parallel and in series to increase capacity or Voltage)
3. Free Maintenance

Safe Performance

Built in BMS, Integrated BMS to monitor temperature, voltage, current to realize over voltage protection, over current protection, over temperature protection, short circuit protection, Reverse Polarity protection.

Pabrik Kita

NO.1:Expert R&D Team

A multidisciplinary team comprising structural engineers, electrical engineers, and circuit engineers, specializing in technologies like battery housing design, electrical circuitry, and protective board development. Tailored aesthetics and functionality for both OEM and ODM solutions

NO.2: Laser Spot Welding Line

At our company, we ensure the delivery of premium, tailor-made battery packs by overseeing every facet of the production process with utmost care. Improved Consistency

* Enhanced Reliability in Automotive-Grade Battery Manufacturing Processes

NO.3: Strict Production Control

We replicate high-altitude and low-pressure environments, free falls, thermal shocks, short circuits, heavy impacts, extrusions, punctures, burns, salt spray tests, high and low-temperature assessments, vibration evaluations, cycle testing, and beyond. Quality Control Guarantee: Our commitment to top-notch quality.

NO.4:Battery Temperature Tests

Our energy storage batteries endure extensive high and low-temperature testing, assuring durability in extreme conditions. They're thoroughly assessed for high and low-temperature performance, as well as thermal stability, ensuring safety and performance. Trust in our batteries for dependable energy storage.

Pengepakan lan Pengiriman

FAQ

1.What models of golf carts is this battery suitable for?

Club Car Onward-All

Club Car Tempo-All

Club Car Precedent 09-Current

Club Car Precedent 04-08

2.What if my golf cart is not one of the above models? What else can I buy from your company?

Our company can customize the size and related functions for you. No additional development fees are required.

3. If my previous battery is lead acid battery, can I use lithium battery (lifepo4 battery) directly?

Yes, lifepo4 batteries can replace lead acid batteries.

4. If my previous battery is lead acid battery, can I still use the previous charger?

No. You need to replace a charger suitable for lifepo4 battery.

5.How many years of warranty can I get?

5years

6. Does your battery contain BMS?

yes. All our batteries have a built-in battery management system (BMS).

7. How can I get this battery?

We support T/T payment, after receiving the money, we will arrange production, and then send the product to you by express, sea, air or rail.

8. Do you support OEM/ODM service?

Yes.Support.

9. Can I customize my own brand battery?

Yes, we can customize LOGO, shell, interface, indicator, charger according to your requirements. . .

10. If my golf cart is not 48V but 36V, what can I purchase from your company?

We are able to provide 36V 72V 50-200Ah lifepo4 battery, you can tell me the information of your golf cart, I will recommend a suitable battery for you.

11. Are there other chargers to choose from?

48V 15A 20A 25A 30A 40A 50A charger
