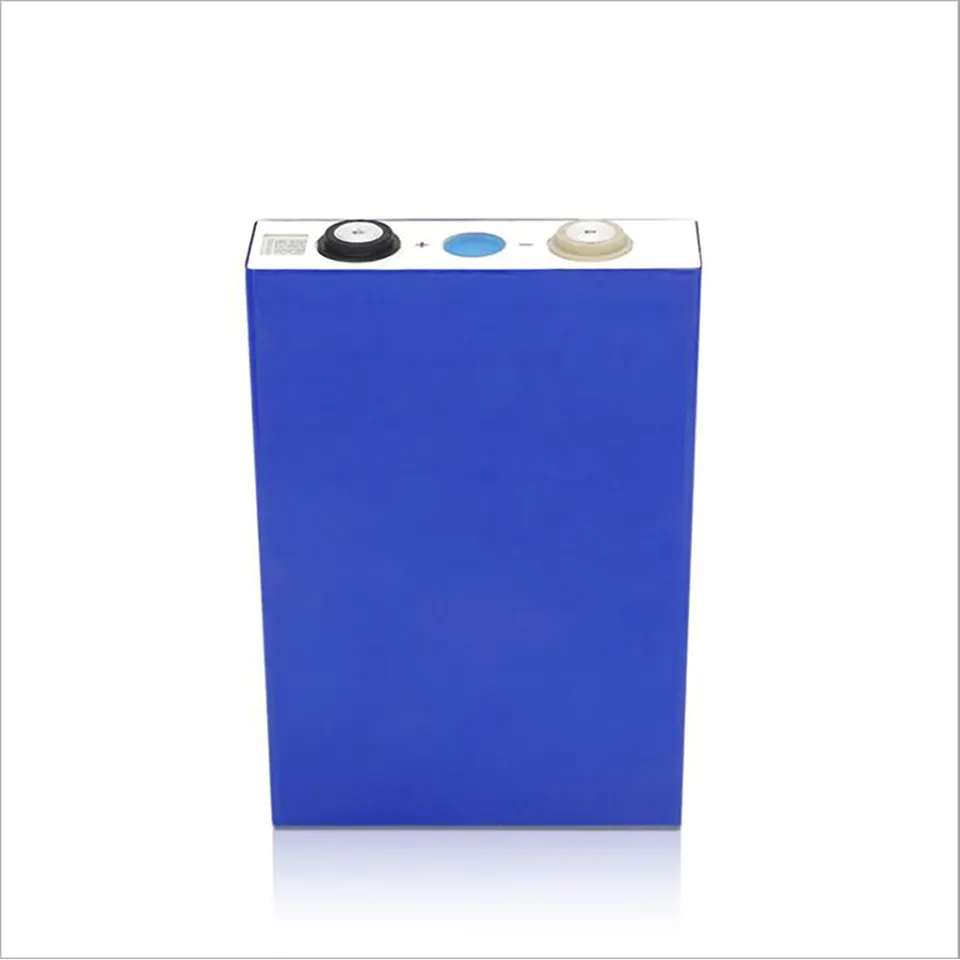

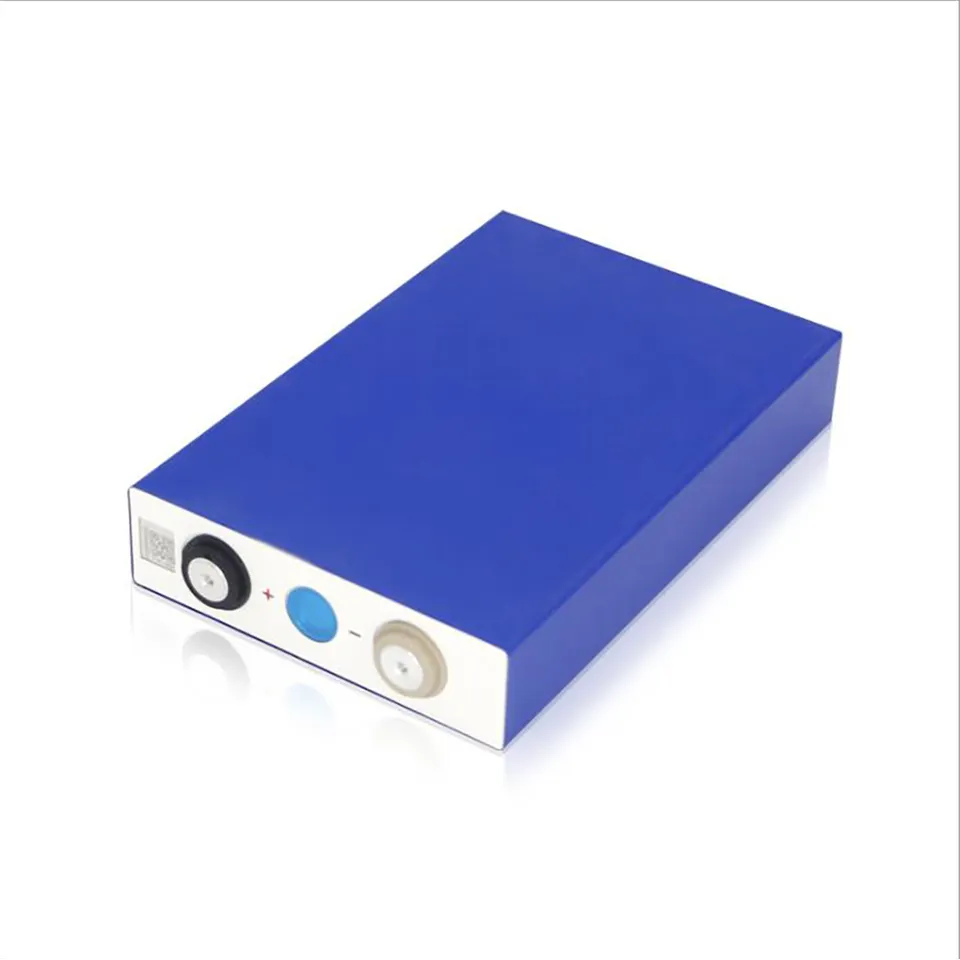

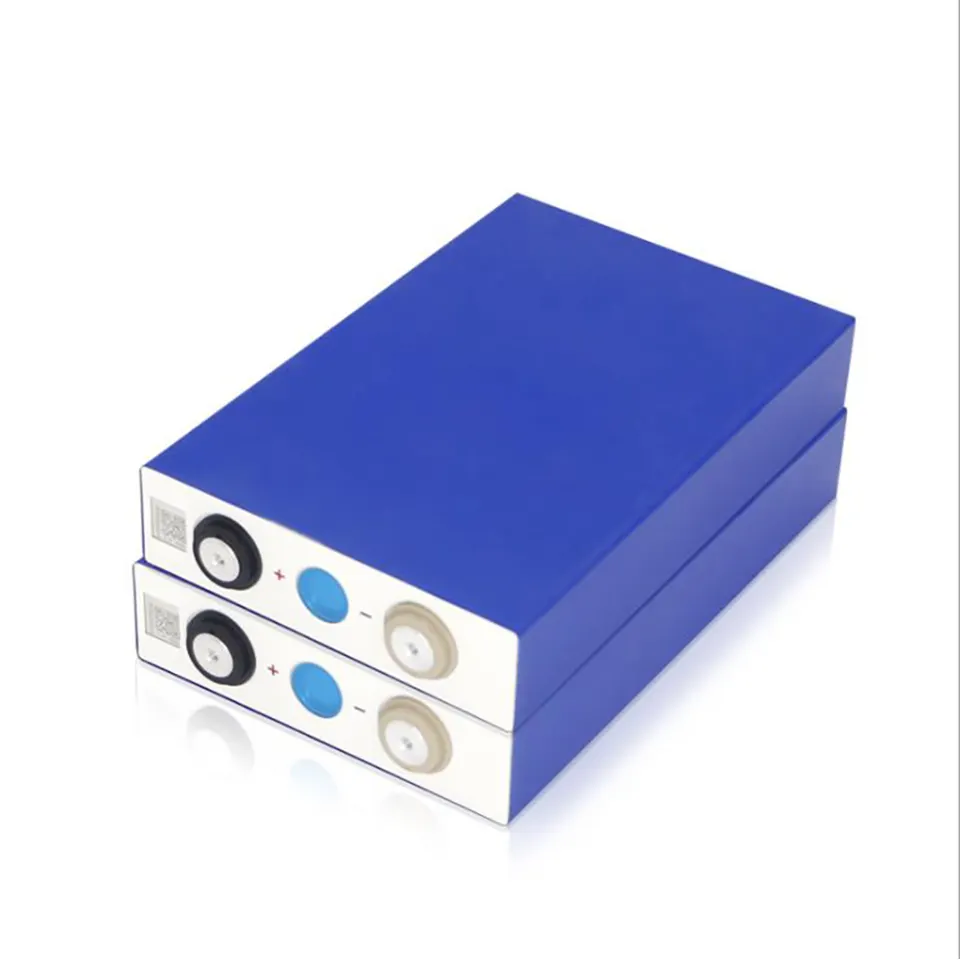

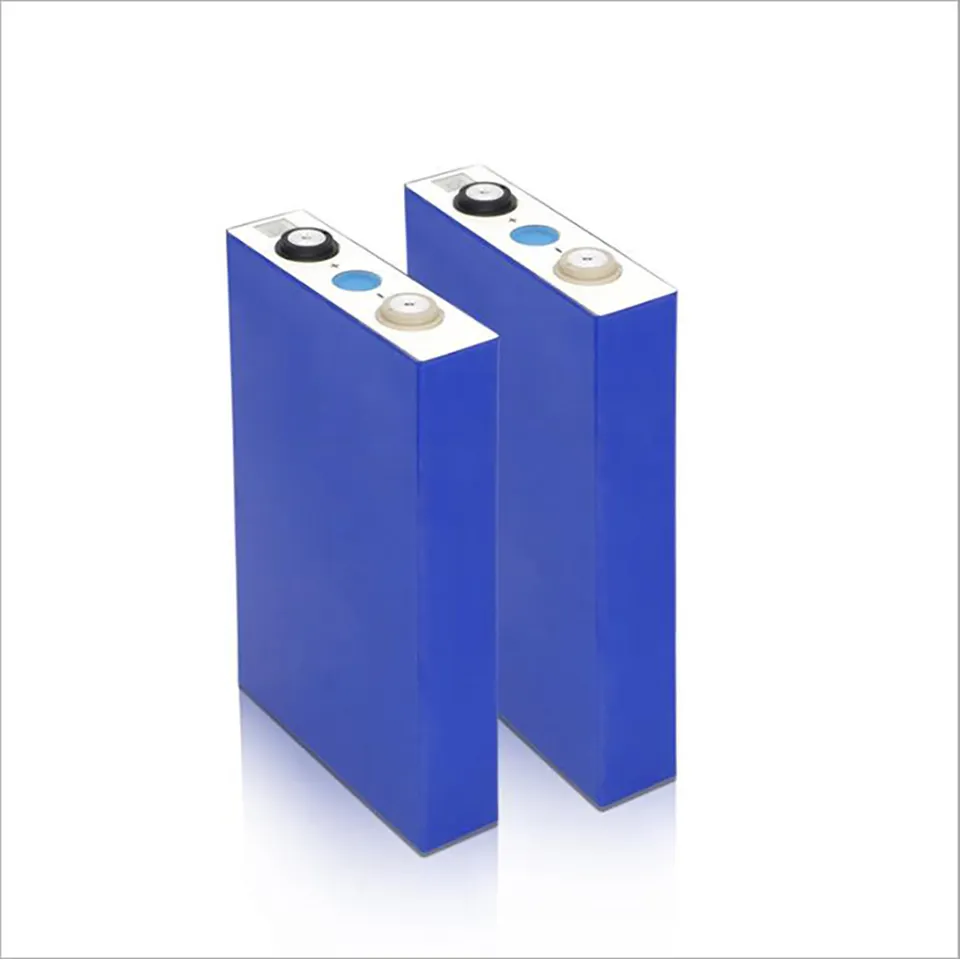

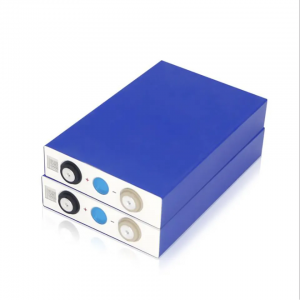

Baterei Prismatic Lifepo4 3.2V 90Ah

2023-06-13 02:44

Spesifikasi

#	Item			Paramèter	Cathetan
1	Kapasitas Nominal			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0.5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Suhu Ngisi daya			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Suhu Ngeculake			-20°C~55°C
9	Suhu Panyimpen		Short Term ( Within 1 month)	-20 ° C ~ 45 ° C	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	Ukuran		Jembar	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36,7 ± 0,5mm
14			High( Total)	200,5 ± 0,5mm
15			High（ Subject）	195.5 ± 0,5mm
16			Tabs Distance	67.0 ± 1.0mm
17	Bobot Baterei			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Aplikasi

Pabrik Kita



Pengepakan lan Pengiriman

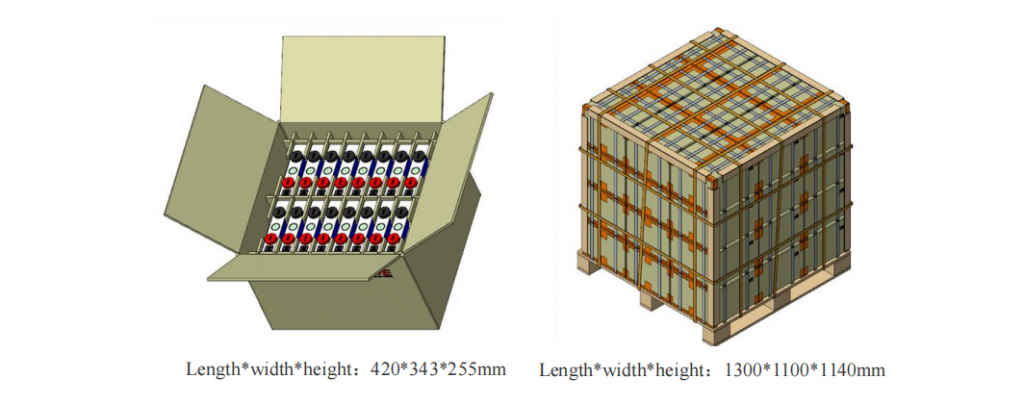

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Panyimpen

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

FAQ

Q1. Apa bisa entuk conto conto?
A. Ya, kita welcome conto conto kanggo nguji lan mriksa kualitas.

Q2. Apa bab wektu timbal?
A. Contoh butuh 3 dina, wektu produksi massa mbutuhake 5-7 minggu, gumantung saka jumlah kuantitas.

Q3. Apa ana watesan MOQ?
A. Ya, kita duwe MOQ kanggo produksi massal, gumantung karo nomer bagean sing beda. Urutan sampel 1 ~ 10pcs kasedhiya. MOQ rendah, 1pc kanggo mriksa sampel kasedhiya.

Q4. Kepiye kapal sampeyan bakal ngirim lan suwene wektu teka?
A. Biasane mandheg ing wayah awan nganti 5-7 dina. Pangiriman pesawat lan segara uga pilihan.

Q5. Kepiye nerusake pesenan?
A. Kaping pisanan, sampeyan kudu ngerti syarat utawa aplikasi sampeyan. Kaping pindho, Kita menehi petunjuk miturut syarat utawa saran sampeyan. Kasedhiya pelanggan nandhakake conto lan nyelehake simpenan kanggo tatanan resmi. Fourthly We ngatur produksi.

Q6. Apa OK kanggo nyithak logo ing produk kasebut?
A. Ya. Mangga ngandhani kanthi resmi sadurunge produksi lan konfirmasi desain adhedhasar conto kita.

Q7.Which sertifikat sampeyan duwe?
A: Kita duwe CE / FCC / ROHS / UN38.3 / MSDS ... lsp.

Q8.Papa bab babar pisan?
A: garansi 3 taun
